NotePAC Family
Mil-spec laptop with excellent performance and unrivaled connectivity. Display is 17.3" full HD and can be tilted for various angles.

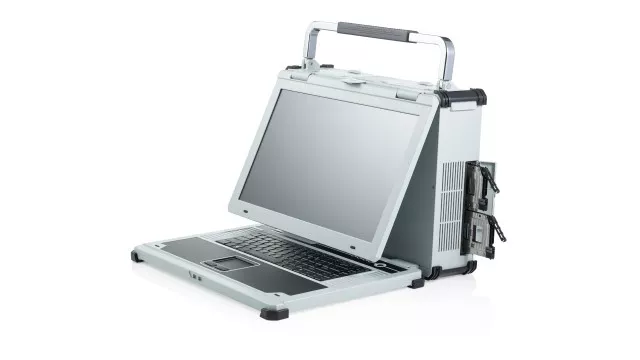

NotePAC Pro V
Mil-spec laptop with excellent performance and unrivaled connectivity that comes with three tiltable 17.3" full HD displays.
NotePAC III Pro V
Mil-spec laptop with excellent performance and unrivaled connectivity that comes with two 17.3" full HD displays.
NotePAC II Pro V
With its integrated battery, Mil-spec laptop with excellent performance and unrivaled connectivity that has been optimized for portability.
NotePAC III Lite
Mil-spec laptop with excellent performance and unrivaled connectivity that comes with four 17.3" full HD displays.
NotePAC IV Pro V
NotePAC Family Technical Specs
NotePAC Pro V
NotePAC III Pro V
NotePAC II Pro V
NotePAC III Lite
NotePAC IV Pro V
17.3" FHD 1920x1080
Upgradable options:
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays
3x 17.3" FHD 1920x1080
2x 17.3" FHD 1920x1080
Upgradable options:
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays
3x 17.3" FHD 1920x1080
Optional 4th display addon
4x 17.3" FHD 1920x1080
Intel® Xeon® D-2183IT
Intel® Xeon® D-2183IT
Intel® Xeon® D-2183IT
Intel® Core™ i7-13700E Processor
Optional Upgrade: Intel® Core™ i9-13900T Processor
Intel® Xeon® D-2183IT
64GB DDR4 RAM
Upgradable to 512GB
32GB DDR5 RAM,
upgradable to 512GB+
16GB DDR5 RAM
Upgradable to 32GB+
Max Memory: 64GB DDR5
32GB DDR5 RAM,
upgradable to 512GB+
Onboard graphics
ASPEED AST2500
NVIDIA Quadro P4000
Intel® UHD (supports up to 4 displays)
ASPEED AST2500
512GB OS Drive
1TB M.2 NVMe,
upgradable to 4 TB NVMe
512GB OS Drive
1TB M.2 NVMe,
upgradable to 4 TB NVMe
1TB M.2 NVMe,
upgradable to 4 TB NVMe
1TB SSD (Total of 4 removable hard drive cages)
4 standard removable 2.5" slots for up to 8TB each
1TB Data Drive (Total of 4 removable hard drive cages)
2 standard removable drives
4 standard removable 2.5" slots for up to 8TB each
6x LAN
Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,
3x HDMI external clone
Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,
CAC reader,
3x HDMI external clone
N/A
Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,
3x HDMI external clone
400W, Battery Option Available
N/A
600W, 100~240 VAC External AC-DC Adapter
N/A
N/A
CAC Reader
N/A
CAC Reader
N/A
N/A
Height: 5.8" (148mm)
Width: 17.2" (437mm)
Depth: 13.2" (335mm)
Chassis dimensions:
Height: 13.7" (347mm)
Width: 17.42" (442.5mm)
Depth: 7.72" (196mm)
Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)
Chassis dimensions:
Height: 6.0" (153mm)
Width: 17.2" (437mm)
Depth: 13.2" (335mm)
Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)
Height: 6.0" (153mm)
Width: 17.2" (437mm)
Depth: 7.5" (191mm)
Chassis dimensions:
Height: 13.7" (347mm)
Width: 17.42" (442.5mm)
Depth: 7.72" (196mm)
Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)
~27.4lbs (12.4kg)
30.9bs (14kg) without batteries
Optional battery pack: Additional 6.6lbs (3kg)
26.5lbs (12kg)
Optional battery pack: Additional 6.6lbs (3kg)
35.3lbs (16kg) with batteries included
30.9bs (14kg) without batteries
Optional battery pack: Additional 6.6lbs (3kg)
MIL-STD-461
N/A
N/A
N/A
N/A
