NotePAC III Pro V
Mil-spec laptop with excellent performance and unrivaled connectivity that comes with three tiltable 17.3" full HD displays.
NotePAC III Pro V
Featuring three high resolution 17" displays, and a 16-core Intel Xeon processor, NotePAC III Pro V is ideally suited to Geospatial-Intelligence, C4ISR, drone control and any other application that demands rugged reliable processing power in a highly portable package.
The orientation of the system allows for more ergonomic keyboard placement, and also gives the display system a more solid structure to unfold from. This works particularly well for in-vehicle environments where motion can cause the 2nd and 3rd displays to vibrate.
Connectivity is unparalleled in a portable computer with eight ethernet ports - two of them fiber. Typical uses for the 10G fiber connections include connection to Network Attached Storage (SAN/NAS).
A CAC card reader makes securing access convenient. Three HDMI output ports allow all three of the displays to be duplicated as required in the CIC.
Add-on Battery Expansion Pack
The add-on battery expansion pack charges the hot-swappable batteries, and it includes an AC-DC adapter and a power cord.
It features a DC-input jack, six battery slots, and six LEDs for power and charging indicators. Connect the AC-DC adapter cable to the DC-input jack and then insert the battery packs in the correct direction into each slot to charge.
After inserting the battery pack in the slot, the LED indicators light up (orange) if the battery pack is being recharged. When fully charged, the indicator will turn blue.

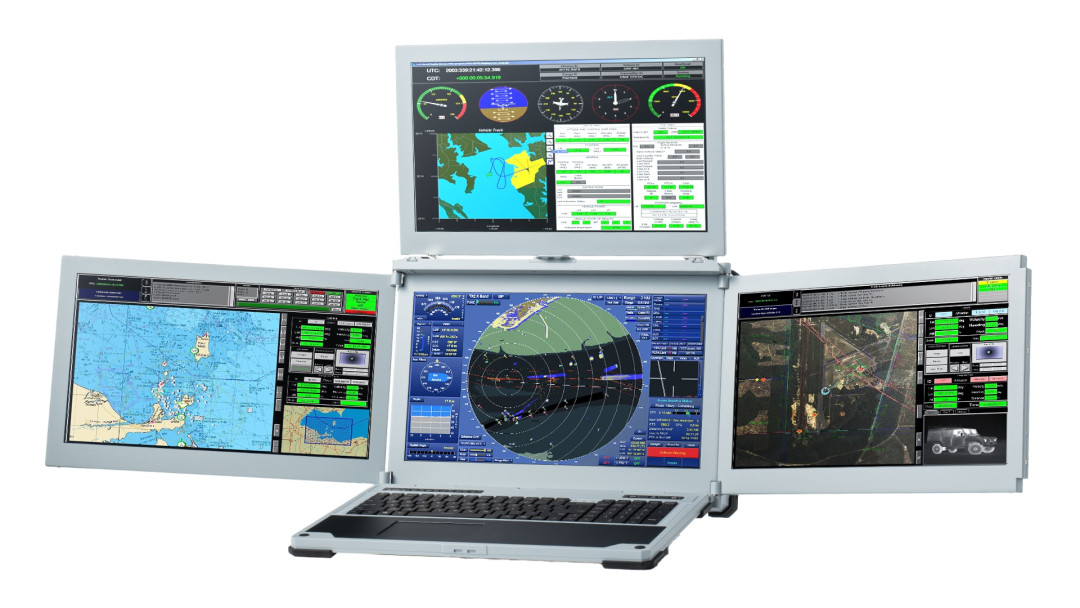

Add-on Display
The NotePAC III Pro V can be enhanced with a modular add-on display. This additional display allows for even more screen space and display configurations. This easy-to-attach additional display easily mounts to the top of the center of the unit in less than a minute. The increase in screens greatly increases efficiency and productivity. When compared to single-monitor settings, organizations that used two or more displays were able to enhance productivity significantly.
The extra screens are suitable for displaying mission critical applications and for displaying geographic map materials and GIS data.
Technical Specifications
| Product | NotePAC III Pro V |
|---|---|
| Chassis Color | Light Gray |
| Display | 3x 17.3" FHD 1920x1080 |
| CPU | Intel® Xeon® D-2183IT |
| Memory | 32GB DDR4 RAM, upgradable to 512GB |
| Graphics Card | ASPEED AST2500 |
| OS Drive | 1TB M.2 NVMe, upgradable to 4 TB NVMe |
| Storage | 4 standard removable 2.5" slots for up to 8TB each |
| Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, Dual LAN with 10G SFP+ LAN via SoC, Dual LAN with 10Gbase-T, 3x HDMI external clone |
| Battery | 6x 10.8V, 9200MAH, 99WH |
| Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries |
| Input | 19VDC/31.6A |
| Output | 19VDC |
| Charger Specs | Charging voltage: 19V ± 1V, Charging current: 13A ± 0.5A |
| Dimensions | Chassis dimensions: Height: 13.7" (347mm) Width: 17.42" (442.5mm) Depth: 7.72" (196mm) Battery dimensions: Height: 12.67" (322mm) Width: 17.04" (433mm) Depth: 2.71" (69mm) |
| Weight | 30.9bs (14kg) without batteries Optional battery pack: Additional 6.6lbs (3kg) |
| Expansion Slots | PCIe x8, PCIe x16 |
| Keyboard & Mouse | Backlit keyboard, available in a variety of languages |
| Accessories | USB Cable, Power Cable, DVD Driver |
| Quality | ISO 9001 |
| Customization | Military connectors, custom I/O, and more. |
Configuration Options
The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.
Contact Sales| Product |
NotePAC III Pro V
|
NotePAC III Pro
|
NotePAC Pro V
|
|---|---|---|---|
| Display | 3x 17.3" FHD 1920x1080 | 3x 17.3" FHD 1920x1080 Upgradable options: UHD 3840x2160, 60Hz Display, 2K, 144Hz displays |
17.3" FHD 1920x1080 Upgradable options: UHD 3840x2160, 60Hz Display, 2K, 144Hz displays |
| CPU | Intel® Xeon® D-2183IT | Intel® Xeon® D-2183IT | Intel® Xeon® D-2183IT |
| Memory | 32GB DDR4 RAM, upgradable to 512GB |
16GB DDR4 RAM Upgradable to 32GB+ |
64GB DDR4 RAM Upgradable to 512GB |
| Graphics Card | ASPEED AST2500 | NVIDIA Quadro P4000 | Onboard graphics |
| OS Drive | 1TB M.2 NVMe, upgradable to 4 TB NVMe |
512GB OS Drive | 512GB OS Drive |
| Storage | 4 standard removable 2.5" slots for up to 8TB each | 1TB Data Drive (Total of 4 removable hard drive cages) | 1TB SSD (Total of 4 removable hard drive cages) |
| Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, Dual LAN with 10G SFP+ LAN via SoC, Dual LAN with 10Gbase-T, 3x HDMI external clone |
6x LAN | 6x LAN |
| Battery | 6x 10.8V, 9200MAH, 99WH | N/A | N/A |
| Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries | N/A | N/A |
| Input | 19VDC/31.6A | N/A | N/A |
| Output | 19VDC | N/A | N/A |
| Charger Specs | Charging voltage: 19V ± 1V, Charging current: 13A ± 0.5A |
N/A | N/A |
| Dimensions | Chassis dimensions: Height: 13.7" (347mm) Width: 17.42" (442.5mm) Depth: 7.72" (196mm) Battery dimensions: Height: 12.67" (322mm) Width: 17.04" (433mm) Depth: 2.71" (69mm) |
Height: 6.0" (153mm) Width: 17.1" (435mm) Depth: 13" (330mm) |
Height: 5.8" (148mm) Width: 17.2" (437mm) Depth: 13.2" (335mm) |
| Weight | 30.9bs (14kg) without batteries Optional battery pack: Additional 6.6lbs (3kg) |
~24lbs (10.9kg) | ~27.4lbs (12.4kg) |
